USAID

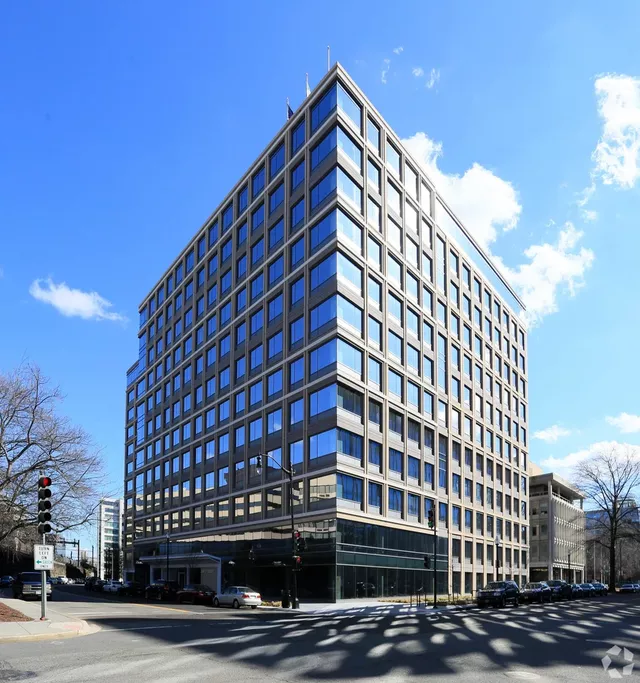

Design-assist and complete buildout for the new home of USAID at 500 D Street, SW, Washington, D.C.
CommScope distribution system buildout consisting of 3,956 Category 6 plenum cables, 334 – Category 6 plenum cables with 1 - RG6 cable to each outlet, 34 - RG6 TV plenum cables, 37 - Category 6 plenum cables Room Scheduler locations, 3 - AV tie locations consisting of 12- Category 6 plenum cables 12 strand OM4 fiber cables, 149 - Category 6 plenum cables for Wireless Access Points, 7 - Class Net locations consisting of 2 strand OM3 fiber cables, 1- 24 strand Multimode OM4 armored CMP fiber cable / 1 – 25 pair Category 5e CMP copper cable from the 12 floors IDF’s to the MDF, 1 – 6 strand OM3 armored plenum fiber cable / 1- 6 strand OS armored plenum fiber cable / 6 Category 6 plenum cables from the 11th Floor MDF to the DMARC, 1- 50 pair Category 3 cable from each floor to the MPOE/TCOC, cabinets buildout and patched, CommScope fiber enclosures, ladder rack built to support all cabling/distribution in the IDF’s
